Understanding the OSI Model: Layer 2 – The Data Link Layer

NETWORKING

Sirr Gardener

12/9/20243 min read

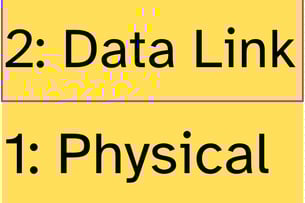

In the world of networking, the OSI (Open Systems Interconnection) model serves as a guide to understanding how data travels across a network. Building on the Physical Layer (Layer 1), which handles the transmission of raw bits, we move to Layer 2: The Data Link Layer. This layer is where data gets organized into frames and becomes reliable for transmission over the physical medium. In this post, we’ll dive into the functions, components, and importance of the Data Link Layer.

What Is the Data Link Layer?

The Data Link Layer is the second layer of the OSI model and acts as a bridge between the raw transmission of data at the Physical Layer and the logical structures of the Network Layer (Layer 3). Its primary purpose is to ensure error-free communication between devices on the same physical network.

At this layer, data is packaged into frames, which include not only the raw data but also addressing and error-checking information. Frames are the fundamental units of data transfer at this level.

Functions of the Data Link Layer

The Data Link Layer performs several essential functions that enable reliable communication:

  1. Framing:

    • The Data Link Layer encapsulates network layer packets into frames. These frames are structured to include headers and trailers with addressing and error-checking information.

  2. Error Detection and Correction:

    • The layer identifies and corrects errors that may occur during data transmission. This is achieved through techniques like cyclic redundancy check (CRC), which is added to the frame to detect corruption.

  3. Flow Control:

    • It ensures that data is sent at a rate the receiving device can handle, preventing packet loss due to overwhelming the receiver.

  4. Media Access Control (MAC):

    • When multiple devices share the same physical medium (e.g., Ethernet), the Data Link Layer determines how they take turns accessing the medium without collisions. This is known as Media Access Control.

  5. Logical Link Control (LLC):

    • Provides multiplexing and error control to allow multiple higher-layer protocols to share the same physical medium.

  6. Physical Addressing:

    • Assigns a unique hardware address (MAC address) to each device on the network to ensure proper delivery of frames.

Key Components of the Data Link Layer

The Data Link Layer is divided into two sublayers, each with specific roles:

  1. Logical Link Control (LLC) Sublayer:

    • Handles error checking, flow control, and communication between the Data Link Layer and Network Layer.

    • Ensures that data is transmitted to the correct protocol at the higher layers.

  2. Media Access Control (MAC) Sublayer:

    • Deals with physical addressing and access to the network medium.

    • Responsible for determining how devices share access to the transmission medium.

Devices and Protocols Operating at the Data Link Layer

The Data Link Layer is integral to the operation of many networking devices and protocols, including:

  • Switches:

    • Operate at the Data Link Layer by forwarding frames based on MAC addresses. They use MAC address tables to make forwarding decisions.

  • Network Interface Cards (NICs):

    • Enable devices to connect to the physical medium and handle Data Link Layer functions like framing and error detection.

  • Ethernet and Wi-Fi:

    • Protocols like Ethernet (IEEE 802.3) and Wi-Fi (IEEE 802.11) define how frames are structured and transmitted over wired or wireless mediums.

  • Point-to-Point Protocol (PPP):

    • Used in point-to-point connections, such as dial-up or direct cable connections, to encapsulate and transmit frames.

Why Is the Data Link Layer Important?

The Data Link Layer plays a vital role in ensuring reliable and efficient communication within a local network. Its significance lies in:

  1. Error Handling:

    • Errors are inevitable in data transmission. The Data Link Layer’s ability to detect and correct errors ensures that data integrity is maintained.

  2. Efficient Medium Sharing:

    • By managing access to the network medium, this layer prevents collisions and optimizes network performance.

  3. Local Device Communication:

    • It enables devices on the same local network to identify and communicate with each other using MAC addresses.

  4. Foundation for Higher Layers:

    • The layer provides a reliable base for the Network Layer to build upon, ensuring that packets are delivered without corruption or loss.

Real-World Use Cases of the Data Link Layer

  1. LAN Communication:

    • In a typical office network, switches use MAC addresses to forward frames between computers and printers, ensuring that data reaches the correct device.

  2. Wi-Fi Networks:

    • The Data Link Layer governs how multiple devices connect to a Wi-Fi router, preventing collisions and ensuring efficient use of the shared wireless spectrum.

  3. Data Transmission in IoT:

    • IoT devices like smart thermostats and sensors rely on protocols at the Data Link Layer (e.g., Zigbee or Bluetooth) to communicate with hubs and gateways.

Challenges and Considerations

Despite its critical role, the Data Link Layer faces several challenges:

  • Collision and Congestion: Without proper media access control, collisions can occur, especially in busy networks.

  • Security Concerns: MAC spoofing can exploit vulnerabilities at this layer, emphasizing the need for secure network design.

  • Scalability: The layer’s reliance on MAC addressing is suitable for local networks but becomes less practical for large-scale systems.

Conclusion

The Data Link Layer is the glue that holds local networks together, providing the reliability, efficiency, and organization needed for data transmission. By understanding its functions and components, we can appreciate how it ensures smooth communication between devices on the same network.

Whether you’re working with switches, setting up a wireless network, or studying network protocols, the Data Link Layer is fundamental to making modern networking possible.
